電容器特點Capacitors Features：
具有損耗小、抗濕性強、電氣性能優良、可靠性好、容量大、使用壽命長和良好的自愈性能。
With a small loss,anti-moist,excellent electrical performance,reliability,large capacity,long life and good self-healing properties.
電容器用途Capacitors Use：
應用范圍廣，專門用于微型水泵，清洗機，洗衣機和單相電機的啟動和運轉。
It is widely used as the start-up and running capacitor that is special for micro water pump, cleaning machine, washing machine, and single-phase motor.
電容器的主要性能指標Capacitors Specification:
|
容量
Capacitance Range
|
1μF—100μF
|
|
容量偏差
Capacitance Tolerance
|
±5% , ±10%
|
|
額定電壓
Rated Alternate Voltage
|
250VAC, 350AC, 370AC, 400VAC, 440VAC, 450VAC,500VAC
|
|
額定頻率
Rated Frequency
|
50/60 Hz
|
|
損耗角
Dissipation Factors
|
≤0.002（1KHz，20℃）
|
|
使用溫度
Operating Temp.
|
-40℃ ~ +85℃ or -40℃ ~ +70℃
|
|
外殼材料
Case Material
|
PBT, PP, Aluminium, Flammability Class - UL 94 V -2, 750C (RTI)
|
|
電介質Dielectric
|
Polypropylene with self healing SH
|
|
絕緣電阻
Insulation Resistance
|
≥3000S
|
|
氣候類別
Weather Category
|
40/85/21, 40/70/21
|
|
引出端電壓
Withstand voltage(Terminal to Terminal)
|
2 X Rated Voltage
|
|
引出端與外殼間電壓
Withstand voltage
(Terminal to Case)
|
Minimum 2000 V AC for 1 Min.
|
|
參考標準Ref. Standard
|
IEC - 252-1993
|
|
質量體系Quality System
|
ISO 9001：2008
|
|
認證證書Approvals
|
CQC,CE
|
|
應用范圍Application
|
Electrical motor, pump, washing machine, Power saver
|

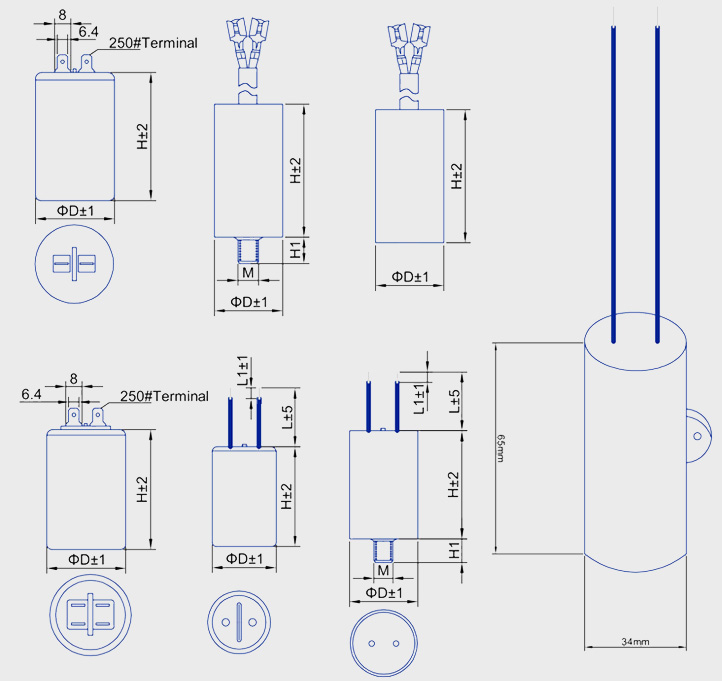

電容器外殼尺寸Capacitors Case Dimensions:
|
容量
Capacitance(μF)
|
450VAC
|
250VAC
|
|
D(mm)
|
H(mm)
|
D(mm)
|
H(mm)
|
|
1μF
|
25
|
57
|
25
|
57
|
|
3μF
|
25
|
57
|
25
|
57
|
|
5μF
|
30
|
70
|
25
|
57
|
|
8μF
|
35
|
60
|
35
|
60
|
|
10μF
|
35
|
70
|
35
|
60
|
|
12μF
|
35
|
70
|
35
|
60
|
|
15μF
|
35
|
70
|
35
|
70
|
|
18μF
|
40
|
70
|
35
|
70
|
|
20μF
|
40
|
70
|
35
|
70
|
|
25μF
|
40
|
80
|
35
|
70
|
|
30μF
|
45
|
92
|
40
|
70
|
|
35μF
|
45
|
92
|
40
|
70
|
|
40μF
|
45
|
92
|
40
|
70
|
|
45μF
|
45
|
92
|
40
|
70
|
|
50μF
|
50
|
92
|
45
|
92
|
|
55μF
|
50
|
100
|
45
|
92
|
|
60μF
|
50
|
116
|
45
|
92
|
|
70μF
|
50
|
116
|
45
|
92
|
|
80μF
|
60
|
120
|
50
|
100
|
|
90μF
|
60
|
120
|
50
|
100
|
|
100μF
|
60
|
120
|
50
|
116
|
注Note:
特殊規格可以按照客戶要求Special specs are available on request
CBB60B03交流電動機電容器
